Basic Information

Rated temperature: 90℃
Rated voltage: 450/750V
According to: EN50525-3-41-2011
The conductor adopts five types of conductors, 1.5-240mm2 Tin plated or bare copper wire
The insulation adopts 90℃ irradiation cross-linked low smoke halogen-free polyolefin material
Environmental requirements: Compliant with RoHS standards
The product is widely used for internal wiring of electronic devices

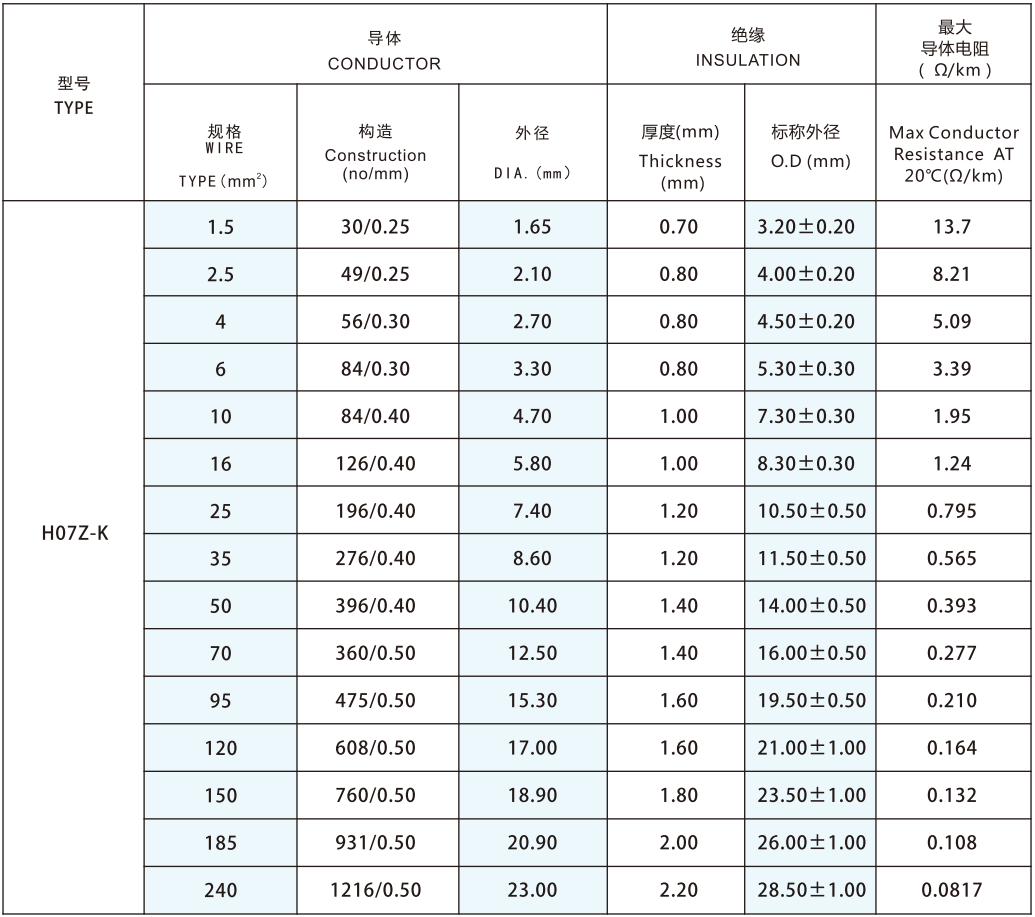

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
