Basic Information

Rated temperature: -40~+125℃
Rated voltage: 1500V
According to: ISO6722

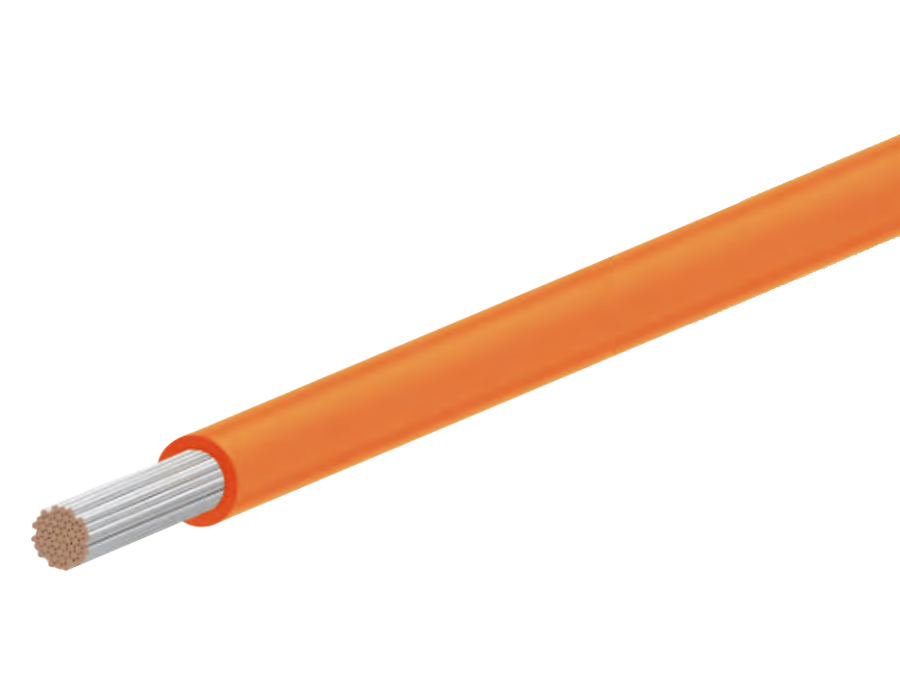

Conductors shall be single or twisted 0.5-120mm2 Tin plated or bare copper wire
The insulation is made of 125℃ irradiated cross-linked polyolefin material
Environmental requirements: Compliant with RoHS standards
The product is widely used to connect charging ports with batteries, battery interiors, batteries with engines, and other components, as a carrier for power transmission

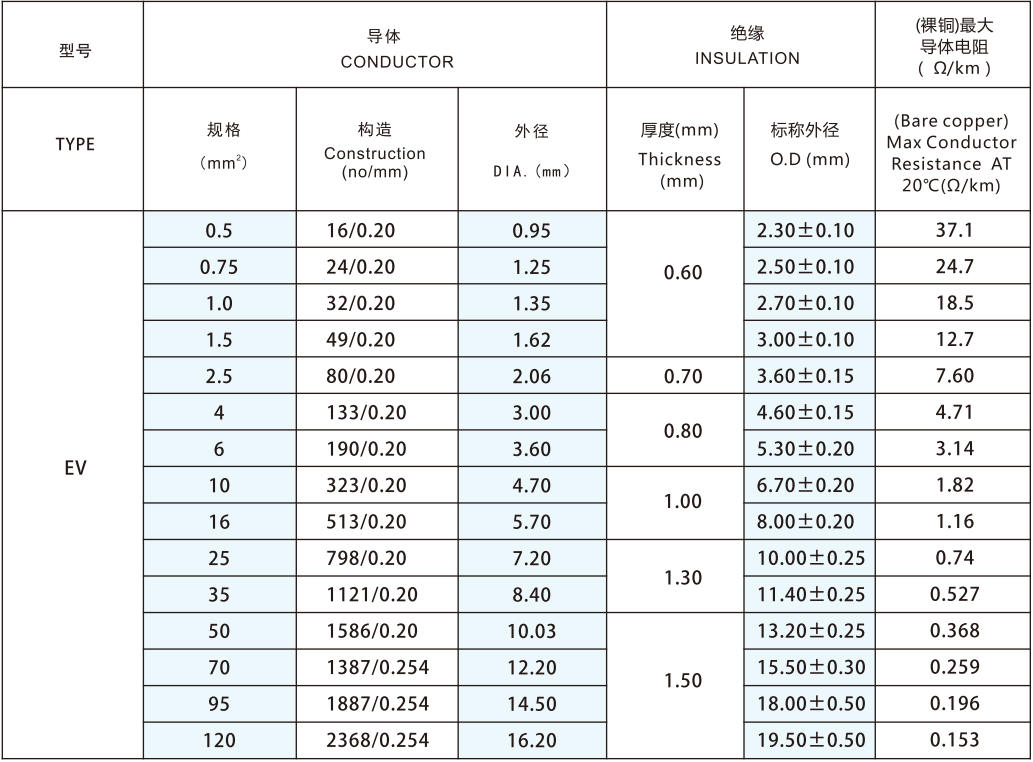

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
