Basic Information

Rated temperature: -40~+100℃
Rated voltage: 600/900V
According to: QC/T1037-2016

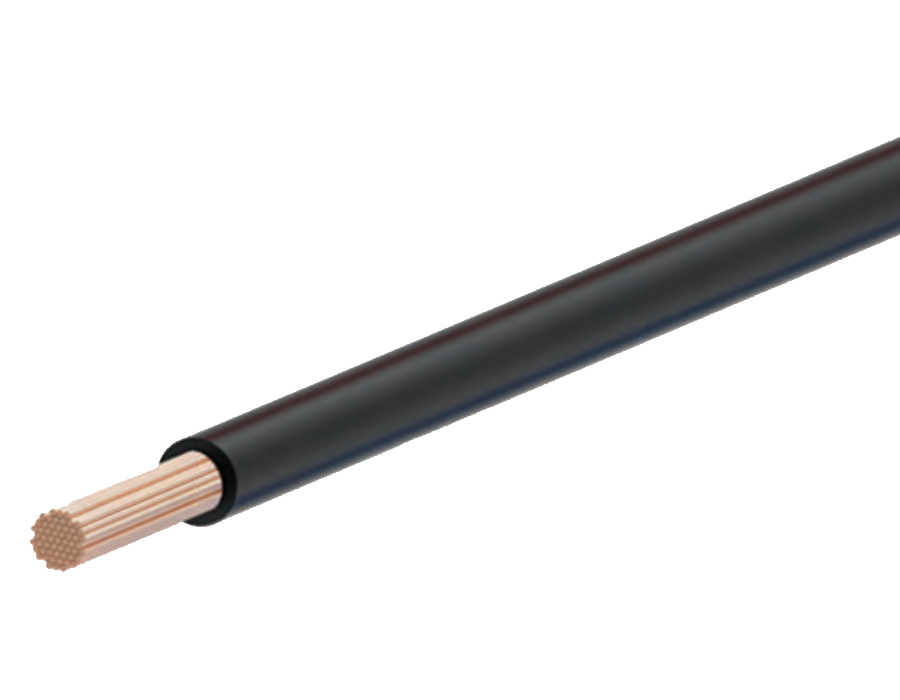

The conductor shall be single or twisted 1.5-50mm2 Tin plated or bare copper wire
PVC insulation material is used for insulation
Environmental requirements: Compliant with RoHS standards
The product is widely used in situations where flexibility is required for fixed wiring

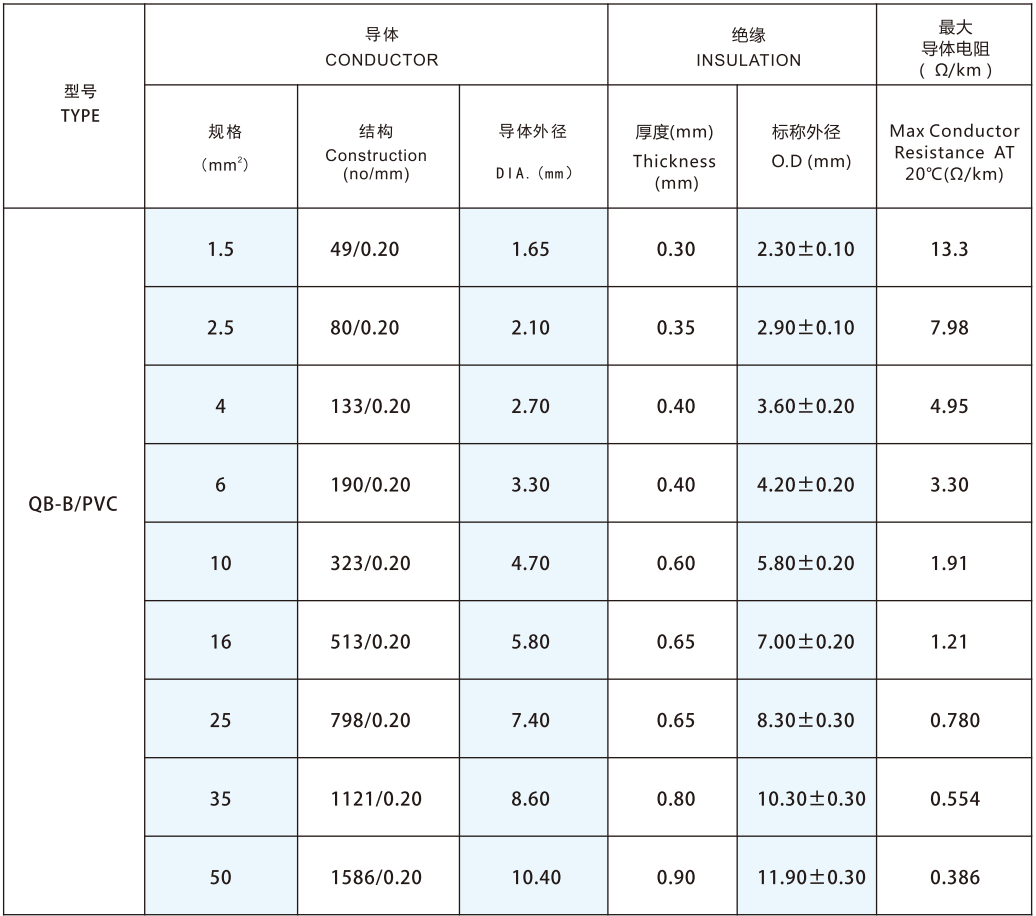

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
