Basic Information

Rated temperature: 180℃
Rated voltage: 1000V
According to: JB/T 6213-2006
The conductor shall be single or twisted 0.5-150mm2 Tin plated or bare copper wire
The insulation is made of high temperature resistant 180 ℃ silicone rubber insulation material
Environmental requirements: Compliant with RoHS standards
The product is widely used in insulated motors, electrical wiring, etc.

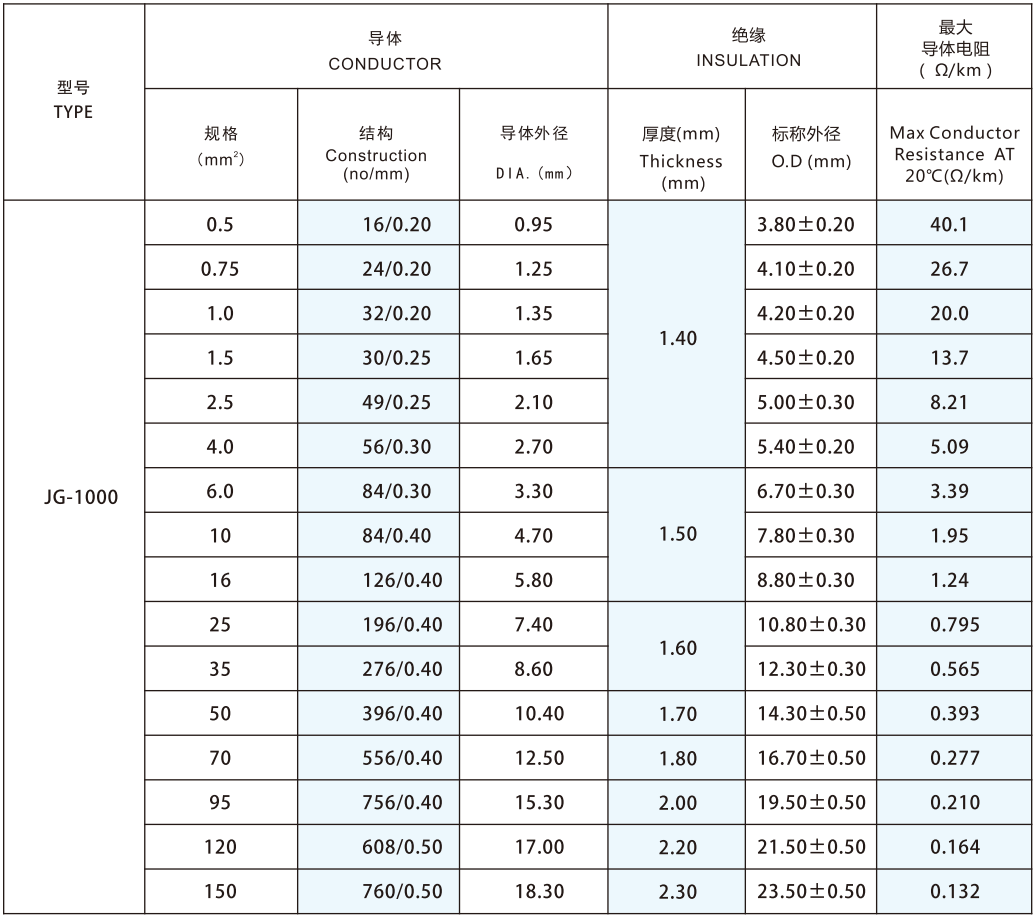

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
