Basic Information

Rated temperature: 105℃
Rated voltage: 1000V
According to: UL758 UL1581 CSA C22.2
The conductor is made of single or twisted 30-10AWG tinned or bare copper wire
The insulation is made of 105℃ irradiated cross-linked polyvinyl chloride material
Environmental requirements: Compliant with RoHS standards
The product is widely used for internal wiring of electronic devices, such as TV receivers and video products

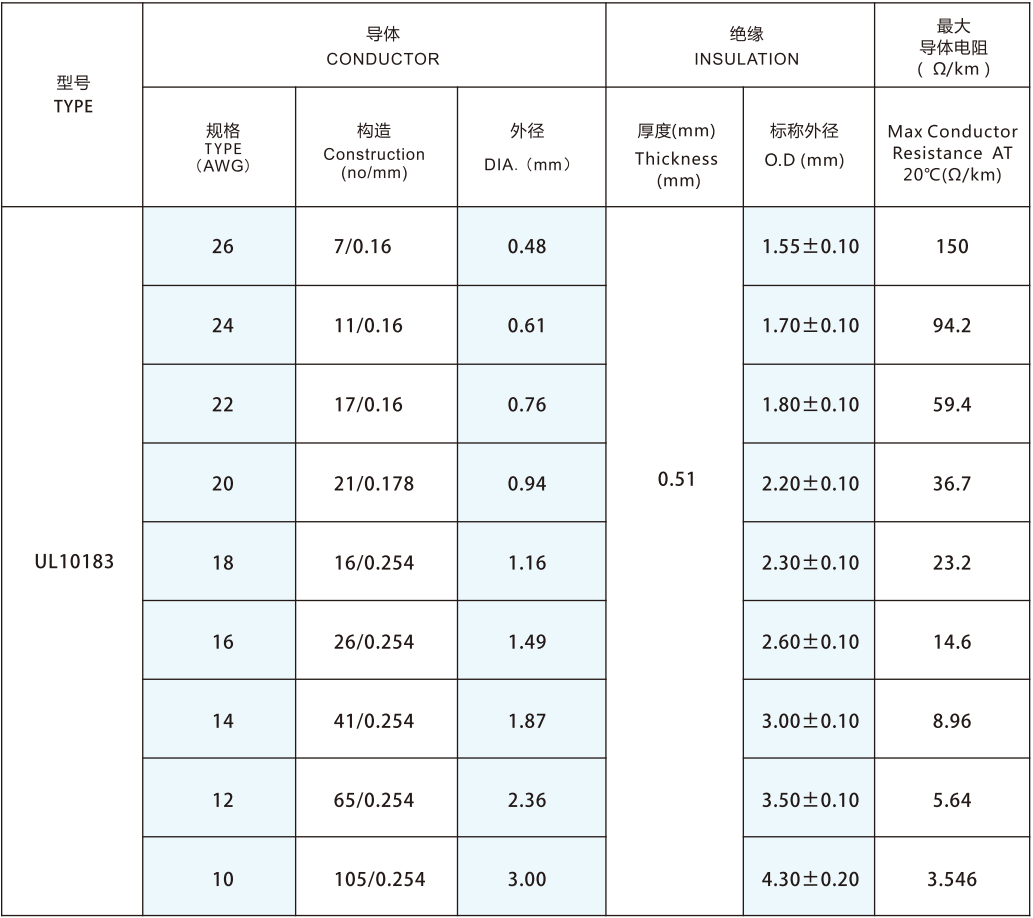

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
