Basic Information

Rated temperature: 80℃
Rated voltage: 300V
According to: UL758, UL1581, CSA C22.2
Solid or Stranded. tinned or bare copper conductor 30-2AWG
PVC insulation
Environmental requirements: Compliant with RoHS standards
Internal wiring of appliances or electronic equipment

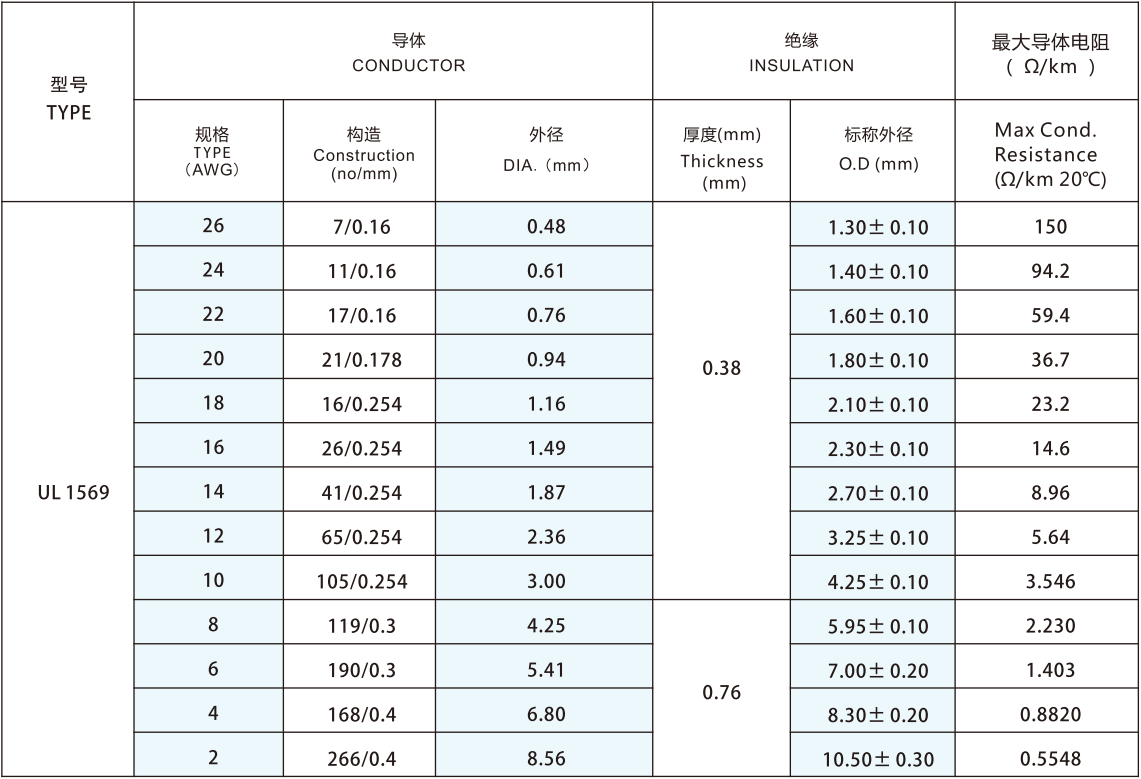

Technical Parameters

*The product's detailed description please refer to the specification for approval
Note: Specitications and structures outside the series can be agreed upon by both the supply and demand parties.
